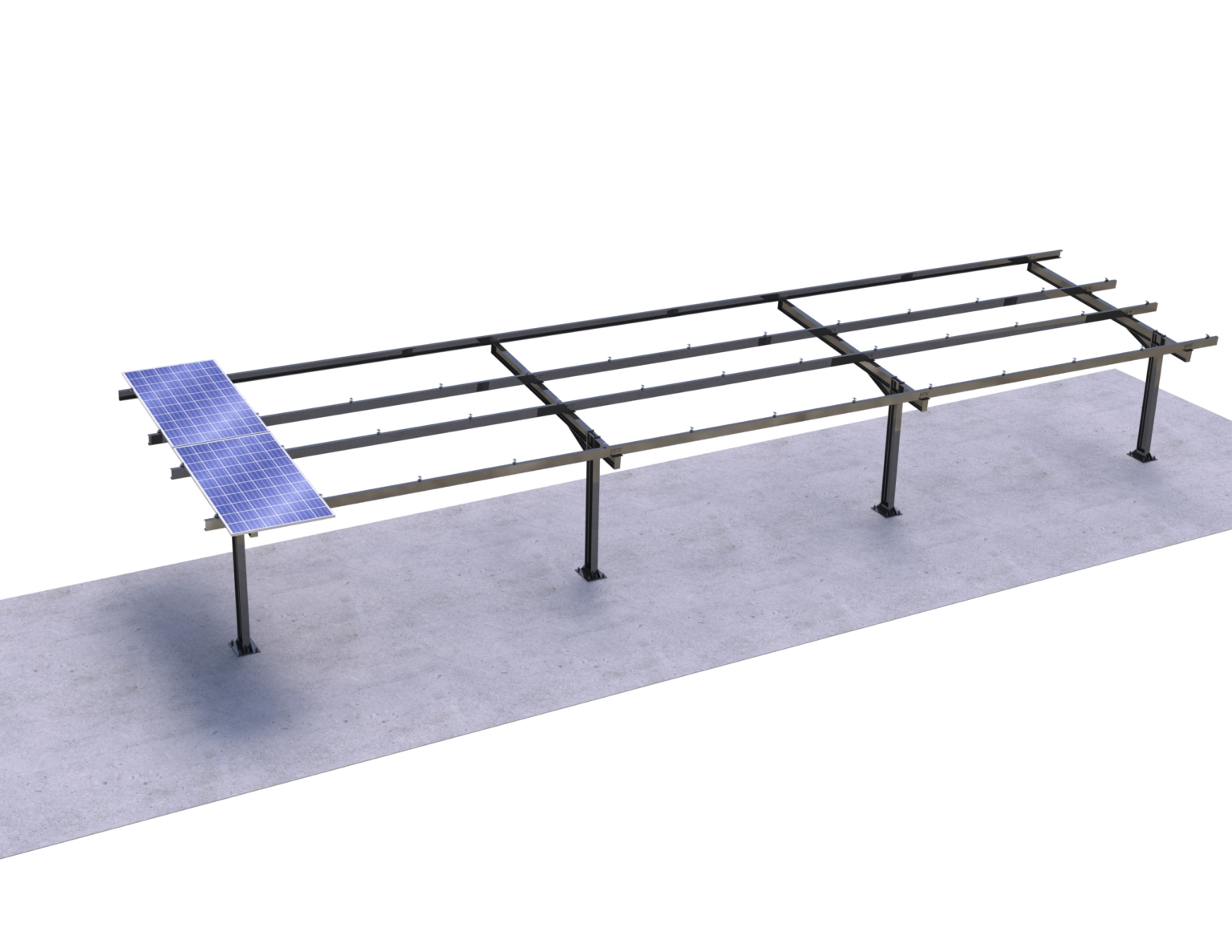

Parking Simple
Sistema porticado con perfiles de acero con eje central
con una disposición de hasta 3 módulos fotovoltaicos en vertical
Características
- Disposición hasta 3 filas en vertical
- Inclinación de 5º o 10º
- Sistema mecanosoldado con uniones atornilladas
- Sistema modular para cualquier medida de módulo FV
- Cualquier composición de número de módulos FV
- Perfiles en Acero galvanizado y Acero Magnelis (según UNE-EN 10088-1:2015)
- Tornillería de Acero Inox AISI 304 (según UNE-EN 10088-1:2015)
- Estructura calculada según normativa estructural
- Fácil montaje
- Se incluyen instrucciones de montaje
- Suministro para grandes plantas
- Garantía mínima 10 años
| Código | Título |
|---|---|
| EN 1990 | Eurocode: Basis of structural design |
| EN 1991-1-4 | Eurocode 1: Actions on structures. Part 1-4: General actions- Wind actions |
| EN 1991-1-3 | Eurocode 1: Actions on structures. Part 1-3: Snow loads |
| EN 1991-1-6 | Eurocode 1: Actions on structures. Part 1-6: Actions during execution |
| EN 1993-1-3 | Eurocode 3: Design of steel structures. General rules. Supplementary rules for cold-formed members and sheeting |
| EN 1993-1-5 | Eurocode 3: Design of steel structures. Plated structural elements |
| EN 1993-1-8 | Eurocode 3: Design of steel structures. Design of joints |
| EN 1993-1-9 | Eurocode 3: Design of steel structures. Fatigue |
| EN 1993-1-10 | Eurocode 3: Design of steel structures. Material toughness and through-thickness properties |
| EN 1993-5 | Eurocode 3: Design of steel structures. Piling |
| EN 1997-1 | Eurocode 7: Geotechnical design. General rule |
| EN 1997-2 | Eurocode 7: Geotechnical design. Ground investigation and testing |
| EN 1998-1 | Eurocode 8: Design of structures for earthquake resisteance. General rules, seismic actions and rules for buildings |
| EN 1999-1-1 | Eurocode 9: Design of aluminum structures-Part 1-1: General structural rules |
| EN ISO 14713-1 | Zinc coatings - Guidelines and recommendaions for the protection against corrosion of iron and steel in structures - Part 1: General principles of design and corrosion resistance. |
| UL 2703 | Standar for Mounting Systems, Mounting Devices, Clamping/Retention Devices, and Ground Lugs for Use with Flat-Plate Photovoltaic Modules and Panels. |
| UL 3703 | Standard for Solar Trackers |
| IEC 62727 | Photovoltaic systems - Specification for solar trackers |
| IEC 62817 | Photovoltaic systems- Design qualification of solar trackers |
| ISO 13849 | Safety of machinery- Safety related parts of control systems |
